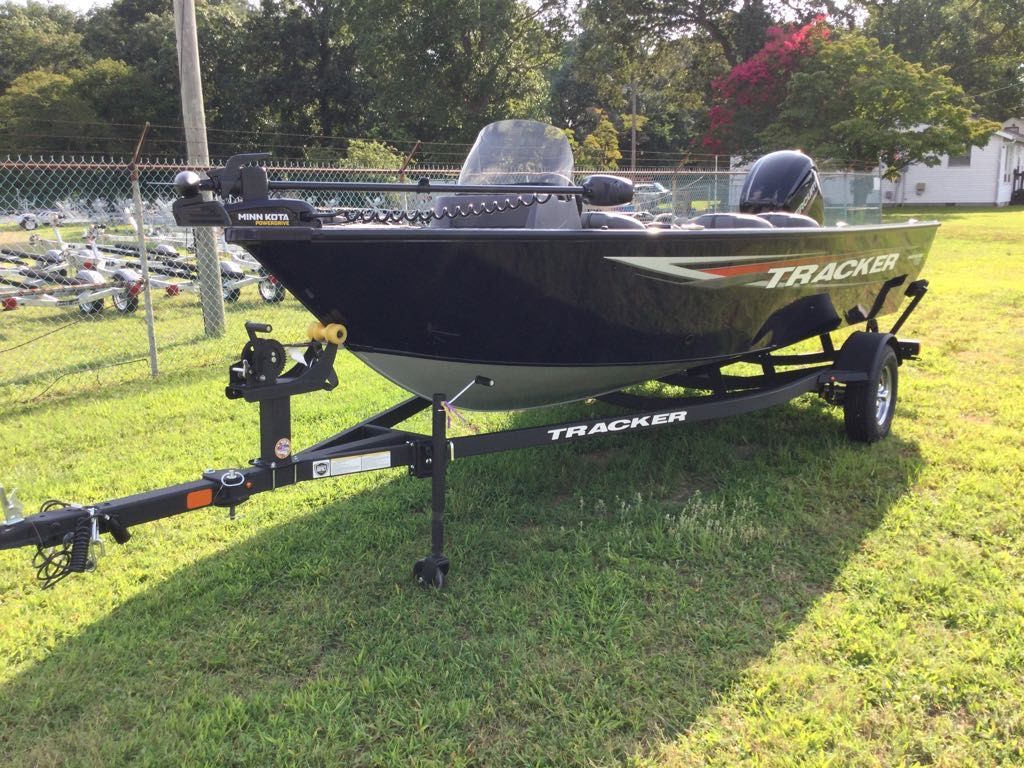

Tracker Pro Guide V-16 SC

Additional Specs

• Length:16' 6"

• Beam: 7' 4"

• Bottom Width: 5' 10"

• Max. Recommended HP: 90 HP

• Fuel Capacity: 25.5 gal.

• Max. Person Capacity: 5 persons

• Max. Person Weight: 655 lbs.

• Max. Person, Motor & Gear Weight: 1200 lbs.

• Interior Depth: 25.5"

• Transom Height: 21"

• Deadrise At Bow: 35 degrees

• Deadrise At Transom: 20 degrees

• Draft: 15"

• Hull Material: 0.1 5052 marine alloy

• Average Dry Weight: 1170 lbs.

• Average Package Weight: 2535 lbs.

• Package Height: 6' 8"

• Package Width: 7' 6"

• Towing Length: 22' 1"

• Storage Length (w/Outboard Trimmed Down): 19' 10"

Standard Features

Comfort, Convenience & Peace of Mind

• Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
• Limited lifetime hull warranty
• NMMA® certified
• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
• Easy-fill EPA-compliant fuel tank
• Bow & stern eyes
• 6 flip-up cleats including 2 midship cleats
• Motor-stop safety lanyard
• Fire extinguisher
• Horn
• Paddle

Livewell System

• Bow 23-gal. (87.06 L), 40" (1.02 m) aerated livewell w/divider, timer, recirculator & pump-out system
• 500 GPH (1,893 LPH) aerator/fill pump
• 500 GPH (1,893 LPH) recirculating pump
• Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
• Adjustable aerator heads for maximum water control

Trolling Motor

• Minn Kota® PowerDrive™ 12V, 42-lb. (19.05 kg) thrust, 54" (1.37 m) shaft, foot-control trolling motor
• Thru-bolted trolling motor mount for extra strength

Console

• Rotomolded console w/tinted windscreen & built-in drink holder
• Forward-console tackle box storage w/bungee cord
• Garmin® STRIKER™ 4 color fishfinder + GPS w/CHIRP transducer
• Single-cable, no-feedback rotary steering
• Illuminated multifunction tachometer/trim gauge & speedometer/fuel gauge
• Toggle switches
• Black Metallic instrument & switch panel
• Mercury® throttle control mount
• Stardust console color

Interior

• 6 pedestal seat base locations
• 2 movable & folding fishing seats w/360°-swivel & lock, & sturdy 2-3/8" (6.03 cm) seat pedestals
• Carpeted trolling motor deck w/drink holder
• Elevated bow & aft fishing decks w/large bow storage lids for easier access
• 2 bow storage compartments
• Starboard below-console storage w/angled footrest
• 1 movable & folding driver/fishing seat w/sliding base adjustment, 360°-swivel & lock, & sturdy 2-3/8" (6.03 cm) seat pedestal
• 2 deep top-loading lockable boxes in the cockpit sides for rods/gear to 8' (2.44 m)
• Port deck rod hold-down straps
• Aft center deck step w/storage
• Exclusive VERSATRACK® accessory-mounting channel in gunnels
• 16-oz. (.45 kg) marine-grade, fishing-friendly carpet on decks & trim
• Low-maintenance commercial-grade, chemical-resistant vinyl cockpit floor

Performance

• Deep deadrise & reversed chines for a smoother, drier ride & better overall performance
• Pressed-in strakes for optimal performance
• Factory-matched, performance-tested propeller

Construction & Exterior

• Color: DIAMOND COAT™ NEW Heritage Red, Starlite Black or Starlite Blue gunnels & hull sides w/Starlite Gray bottom
• DIAMOND COAT™ 3.0 finish — an industry-exclusive powdercoat for brilliant durability
• All-welded, 2-piece .100 aluminum Deep V hull w/wide beam & stable bottom for a smoother, drier ride in rough waters
• Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
• Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
• Pressed-in hull strakes for enhanced performance
• Reverse chine hull design for drier ride & better handling
• Transom motor-mounting plate for increased strength & durability
• Welded-in longitudinal stringer system for full-length support along the running surface
• Pressure-treated floor & deck(s) w/limited lifetime warranty
• All compartment lids are flush-mount, carpeted & all-aluminum for structural rigidity, tight fit & long-term durability

Electrical

• 800 GPH (3,028 LPH) bilge pump
• Stowable navigation lights
• Bow courtesy light
• 2 battery trays
• Interstate® batteries: 1 cranking & 1 trolling
• Console-mounted 12V outlet
• Wiring system wrapped in abrasion-resistant protective conduit

Trailer

• Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
• 13" (33.02 cm) chrome wheels & matching hub covers w/radial tires
• Hubs designed for quick & easy hub lubrication
• Space-saving swing-away tongue to reduce storage length
• Pivot-up locking jack w/swivel wheel
• Heavy-duty winch w/nylon strap & bow safety strap
• Outboard motor support to reduce hull & transom stress while towing
• Heavy-duty upright load guides for easy, centered loading
• Carpeted bunks & fender boards to protect hull
• Submersible LED lighting
• Nylon tie-down straps (supplied w/boat package)
• Safety cables
